Pipe cutting machine

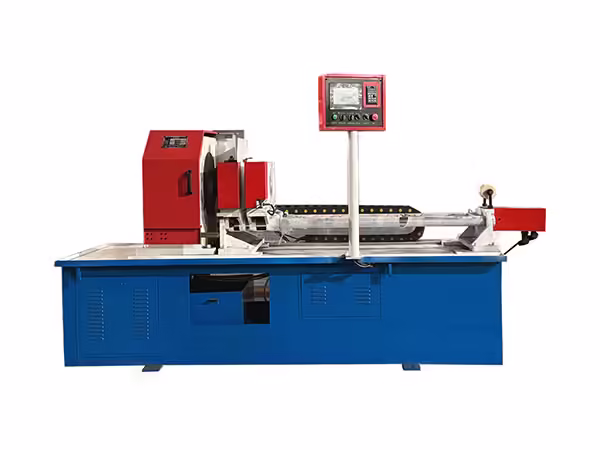

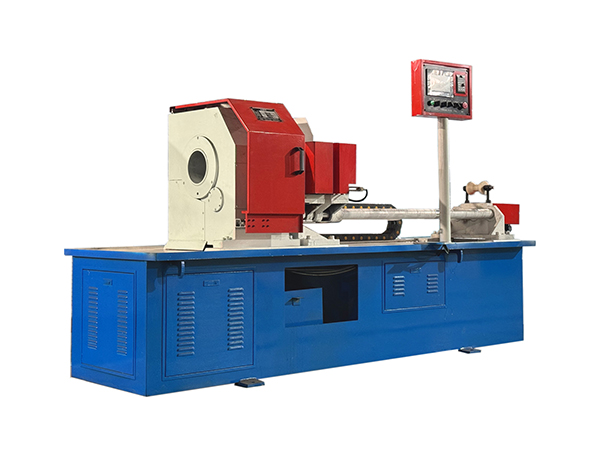

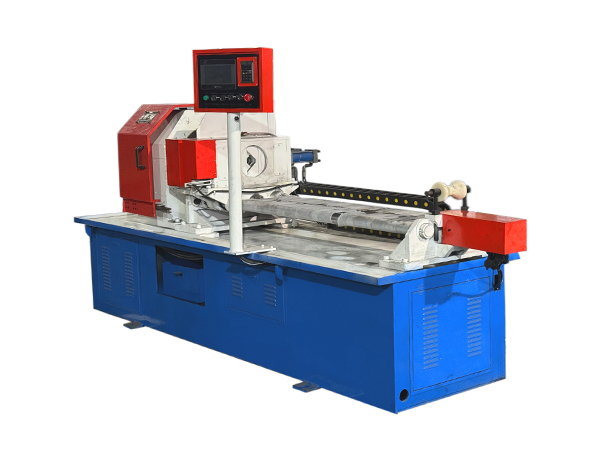

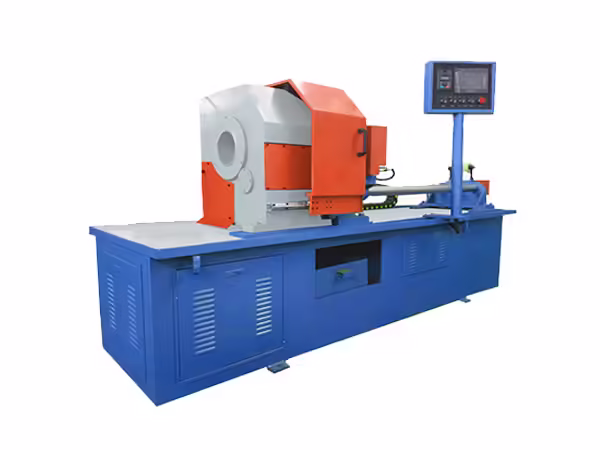

This machine is an automatic pipe cutting machine that automatically feeds, clamps, and cuts round steel pipes. It produces high-quality, high-precision round pipes of medium thickness and is suitable for large-scale, continuous production.
High Durability And High Efficiency
Precision Machining And Customization
Comprehensive Technical Support
Comprehensive After-Sales Guarantee

This device has two models, QZ160 and QZ220, please consult for details

Product use and scope of application:

This machine is an automatic pipe cutting machine that automatically feeds, clamps, and cuts round steel pipes. It produces high-quality, high-precision round pipes of medium thickness and is suitable for large-scale, continuous production.

This machine features a hydraulic clamping device and a PLC-controlled CNC feed mechanism, along with timed circuit control for automatic cutting feed and rapid retraction. High repeatability and positioning accuracy, and a rotating tool while the workpiece remains stationary, significantly increasing cutting speeds. The machine boasts an elegant appearance, excellent rigidity, ease of operation, ease of maintenance, safety features, and advanced manufacturing technology.

The machine adopts a structure where the tool holder rotates while the workpiece is stationary (only linear feeding motion is performed). The spindle adopts a hollow structure with a stationary material receiving barrel installed inside. The workpiece can pass directly through the spindle. The tool is fastened to the tool holder with screws. Two tool holders are provided according to different pipe diameters, ensuring stable accuracy. Stainless steel or carbide tools can be used for cutting as needed.

In summary, this machine tool can automatically complete the feeding, positioning, clamping and cutting of steel pipe blanks in sequence, and is an ideal specialized equipment indispensable for the mass processing and production of rollers.

Technical parameters:

project parameter
model QZ160
How it works The workpiece is stationary and the tool is rotating
Pipe cutting range Ф 60 -159mm
Cutting thickness 3 mm- 8 mm
Main motor power 5.5Kw
Spindle speed Frequency conversion stepless speed regulation
Clamping method Self-centering, hydraulic clamping
Feeding method Servo motor, ball screw
Feeding length Disposable 20-1200 mm
Tool material White steel knife, carbide knife
Feed 0.09/r
Cutting speed About 15 seconds at φ89 × 2.5
Machine tool dimensions 3100 × 1100 × 1460

Main configuration details:

name Specifications Manufacturer
Hydraulic station Kanghao
Servo control system BP410 Taiwan Delta
AC contactor CJX2 Delixi
Button SB2 Delixi
Proximity switches LJ12A3-4 Shanghai
DC6-36V
Spindle speed change 2VF9-3.7KW Shanghai
transformer BK-100 Delixi
DC Power Supply SD-250-20A Mingwei
