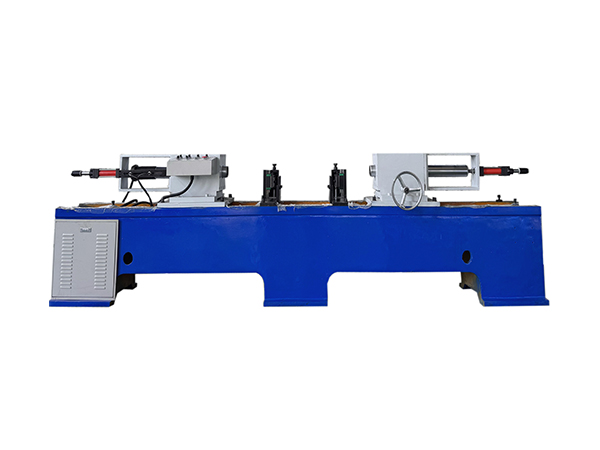

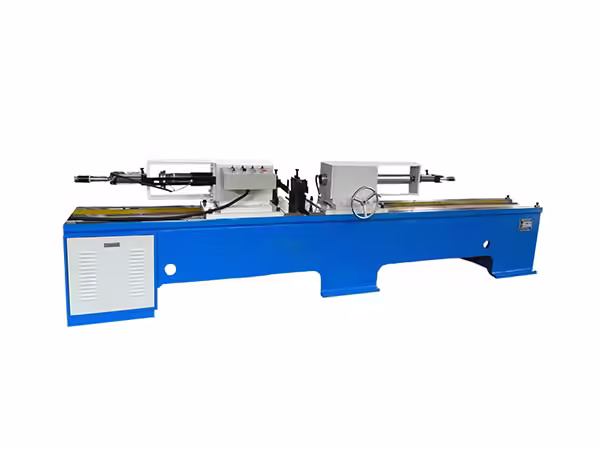

Roller Double-End Automatic Setting Bearing Machine
Roller Double-End Automatic Setting Bearing Machine
Roller Double-End Automatic Setting Bearing Machine
Roller Double-End Automatic Setting Bearing Machine
Roller Double-End Automatic Setting Bearing Machine
Roller Double-End Automatic Setting Bearing Machine

Roller Double-End Automatic Setting Bearing Machine

This machine adopts the hydraulic press-fitting method. It’s a semi-automatic special machine that assembles the conveyor rollers. It’s suitable for the assembly of all kinds of rollers (cast iron or pressed bearing housing) that are manufactured domestically or overseas. The length and diameter of the pressed rollers can be adjusted within a certain range. The loading is manual. Pressing the double head simultaneously can greatly improve the working efficiency. It’s appropriate for batch idler pressing assembly with its economical and practical features.
High Durability And High Efficiency
Precision Machining And Customization
Comprehensive Technical Support
Comprehensive After-Sales Guarantee

This equipment has two models, TY-160*2200 and TY-220*2200. Please consult for details.

Application and usage:

The roller double-end automatic setting bearing machine adopts the hydraulic press-fitting method. It’s a semi-automatic special machine that assembles the conveyor rollers. It’s suitable for the assembly of all kinds of rollers (cast iron or pressed bearing housing) that are manufactured domestically or overseas. The length and diameter of the pressed rollers can be adjusted within a certain range. The loading is manual. Pressing the double head simultaneously can greatly improve the working efficiency. It’s appropriate for batch idler pressing assembly with its economical and practical features.

Technical specification:

Item Parameter
Model TY-220*2200
Spindle center height 850 mm
Roller diameter pressed Φ76~219mm
Roller length pressed 200~2200 mm
Hydraulic system working pressure 2.5~4.5 MPa
Maximum pressing force 4000 kgf
Overall dimension 3900*700*1100mm
Coaxial deviation of both-side pressing spindles ≤0.1 mm

Main parts breakdown:

Name Model Manufacturer
Hydraulic unit Kanghao
PLC EC-24 Taiwan Delta
AC contactor CJX2 Delixi
Button SB2 Delixi
Approach switch LJ12A3-4  DC6-36V
Microrelay LNY-DC24V OMRON

Finished product:
