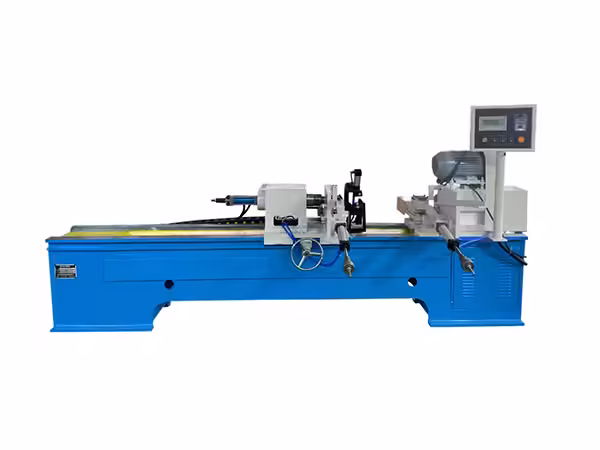

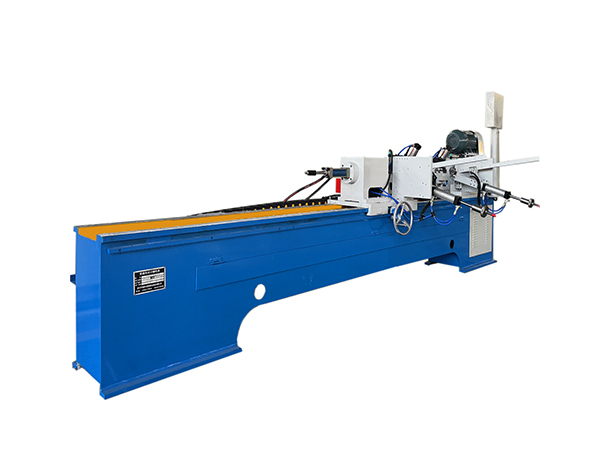

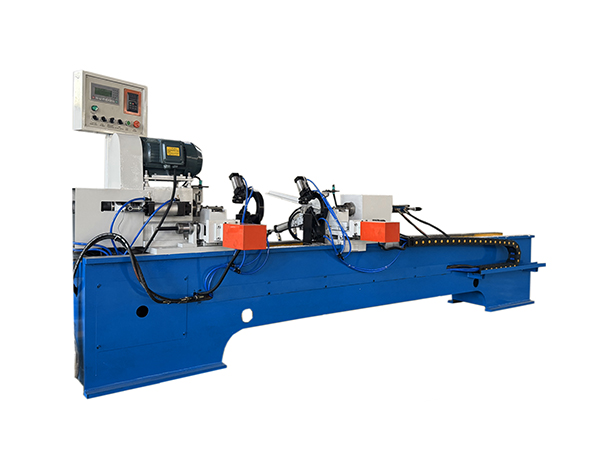

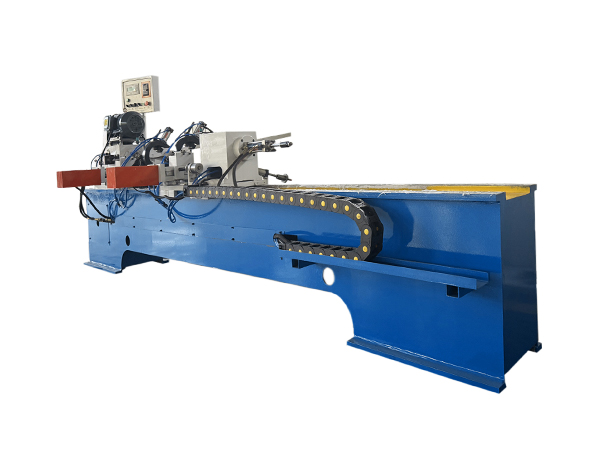

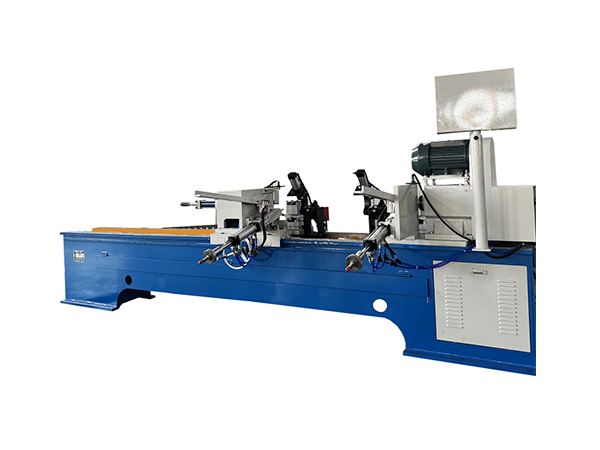

Conveyor Roller Shaft Circlip Grooving Machine
Conveyor Roller Shaft Circlip Grooving Machine
Conveyor Roller Shaft Circlip Grooving Machine
Conveyor Roller Shaft Circlip Grooving Machine
Conveyor Roller Shaft Circlip Grooving Machine
Conveyor Roller Shaft Circlip Grooving Machine
Conveyor Roller Shaft Circlip Grooving Machine
Conveyor Roller Shaft Circlip Grooving Machine
Conveyor Roller Shaft Circlip Grooving Machine
Conveyor Roller Shaft Circlip Grooving Machine

Conveyor Roller Shaft Circlip Grooving Machine

The product is special automatic equipment for processing the circlip grooves at both ends of the roller shaft of the belt conveyor. It is suitable for the production and processing of roller shafts at home and abroad. This machine adopts the domestic advanced superposition valve hydraulic system, realizes the spindle box fast forward and fast retract, and can do stepless speed regulation, less auxiliary working time, and high working efficiency. Can process the two shaft endsand single circlip grooves at both ends at the same time.
High Durability And High Efficiency
Precision Machining And Customization
Comprehensive Technical Support
Comprehensive After-Sales Guarantee

Equipment structure, performance, and characteristics:

The conveyor roller shaft circlip grooving machine is special automatic equipment for processing the circlip grooves at both ends of the roller shaft of the belt conveyor. It is suitable for the production and processing of roller shafts at home and abroad. This machine adopts the domestic advanced superposition valve hydraulic system, realizes the spindle box fast forward and fast retract, and can do stepless speed regulation, less auxiliary working time, and high working efficiency. Can process the two shaft ends and single circlip grooves at both ends at the same time. The programmable logic controller (PLC) imported from Taiwan is the core, and the advanced contactless switch is the limit to control the program. Stable and reliable work, high degree of automation, suitable for roller bulk processing.

Technical parameter:

type TKC-2040
roller shaft dia 20-40
roller shaft length 280-2200
center height 850 mm
spindle speed frequency control
hydraulic station kanghao
hydraulic system working pressure 2.5~4.5 MPa
PLC DELTA
Control button Schneider
alternating current contactor DELUXE
microrelay CHNT
spindle motor 4 kW
machine weight 2000 kg
Dimension (LxWxH) 3700*1200*1100

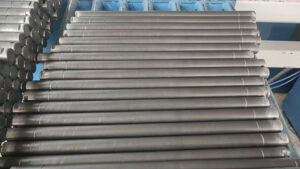

Finished product:
