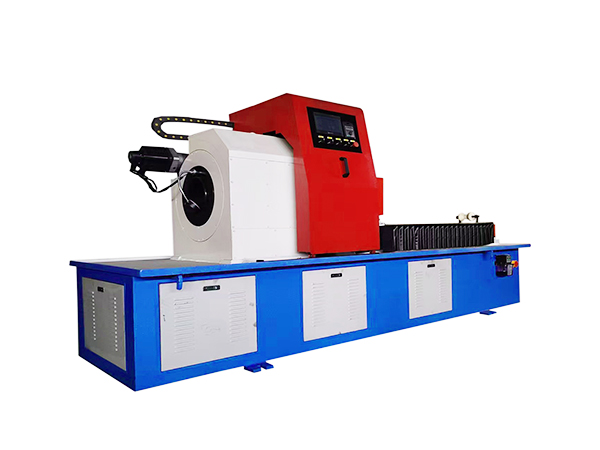

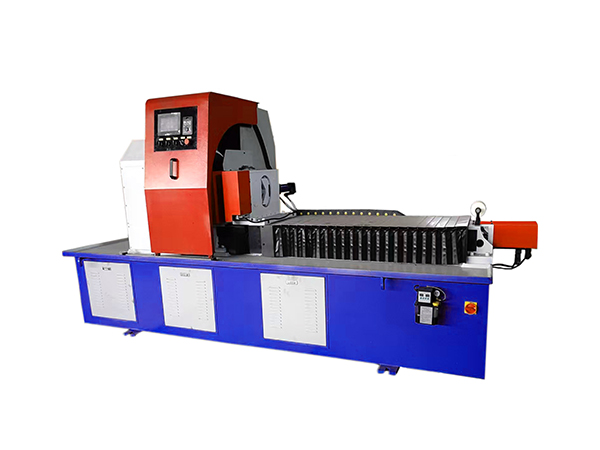

Automatic Tube Cutting Machine (Servo Tool Feeding)

It adopts a PLC human-machine interface control system. It’s easy to operate with automatic length fixing, feeding, and cutting upon inputting related data. It lets the servo motor, ball screws, and linear rail work together to feed materials; therefore, a high accuracy is acquired. It uses the tool rotary method; literally, the tool is rotating and the tube is static, and it brings a smooth cutting surface and fewer burrs. It has the features of high cutting speed and accuracy, longer tool life, lower labor intensity, and so on. It has been used widely in many industries.
High Durability And High Efficiency
Precision Machining And Customization
Comprehensive Technical Support
Comprehensive After-Sales Guarantee

The automatic tube cutting machine (servo tool feeding) has two models, CNQ160 and CNQ220; please consult for details.

Machine features:

The automatic tube cutting machine (servo tool feeding) adopts a PLC human-machine interface control system. It’s easy to operate with automatic length fixing, feeding, and cutting upon inputting related data. It lets the servo motor, ball screws, and linear rail work together to feed materials; therefore, a high accuracy is acquired. It uses the tool rotary method; literally, the tool is rotating and the tube is static, and it brings a smooth cutting surface and fewer burrs. It has the features of high cutting speed and accuracy, longer tool life, lower labor intensity, and so on. It has been used widely in many industries.

Servo feed cutting machine; feed speed can be adjusted using a CNC tool, no need for sharpening. High efficiency, low failure rate, simple operation.

Technical specification:

Item Parameter
Model CNQ160
Operation mode The workpiece is stable, and the tool is rotating
Tube diameter scope Φ76~159mm
Tube thickness 2~10 mm
Main motor power 7.5 kW
Spindle speed Frequency conversion and stepless speed regulation
Clamping mode Self-centering and hydraulic clamping
Feeding mode Servo motor, ball screws and linear rail
Feeding length 20~1100 mm for one time
Tool materials CNC machine clamp cutter
Amount of feed Under the control of a servo motor and adjustable
Cut-off speed Φ89*3, about 15 seconds as an example
Cut-off length deviation ≤0.1 mm
Parallelism of two cut-off ends ≤0.1 mm
