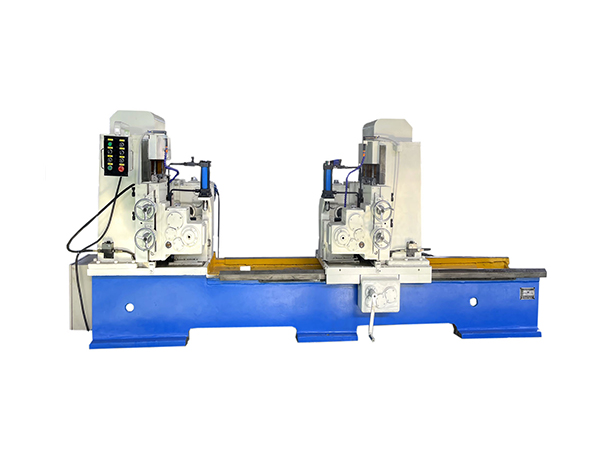

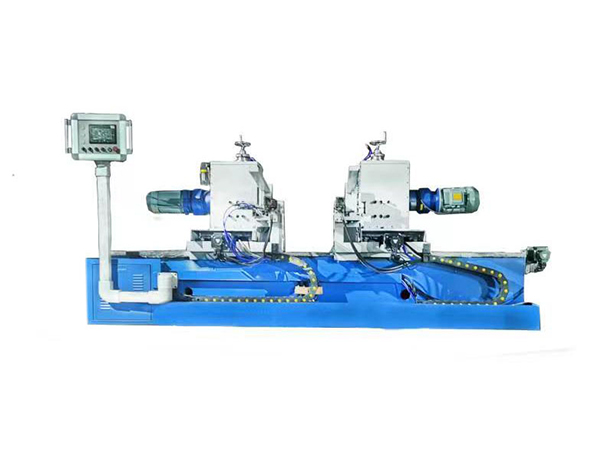

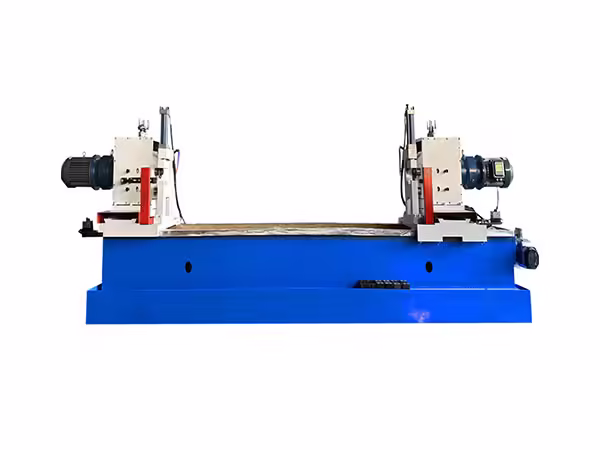

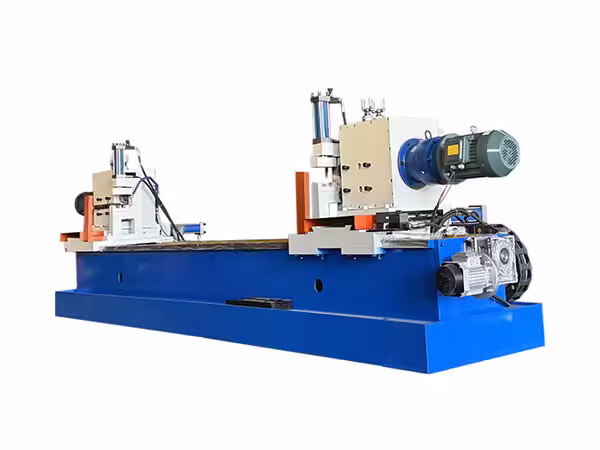

Automatic Roller Shaft Double End Flat Slot Milling Machine
Automatic Roller Shaft Double End Flat Slot Milling Machine
Automatic Roller Shaft Double End Flat Slot Milling Machine
Automatic Roller Shaft Double End Flat Slot Milling Machine
Automatic Roller Shaft Double End Flat Slot Milling Machine
Automatic Roller Shaft Double End Flat Slot Milling Machine
Automatic Roller Shaft Double End Flat Slot Milling Machine
Automatic Roller Shaft Double End Flat Slot Milling Machine

Automatic Roller Shaft Double End Flat Slot Milling Machine

The product is special automatic equipment for machining belt conveyor roller shafts with flat grooves at both ends. It is suitable for the production and processing of roller shafts at home and abroad. This machine uses the domestic advanced superposition valve hydraulic system, realizes the spindle box fast advance and fast back, and can steplessly adjust the speed. The auxiliary man-hour is small, the work efficiency is high, and it can process the shaft head to pass the flat, and the shaft head does not have the groove flat. Two ends of four processing surfaces can be processed at the same time.
High Durability And High Efficiency
Precision Machining And Customization
Comprehensive Technical Support
Comprehensive After-Sales Guarantee

Product use and scope of application:

The automatic roller shaft double end flat slot milling machine is special automatic equipment for machining belt conveyor roller shaft with flat grooves at both ends. It is suitable for the production and processing of roller shafts at home and abroad. This machine uses the domestic advanced superposition valve hydraulic system, realizes the spindle box fast advance and fast back, and can steplessly adjust the speed. The auxiliary man-hour is small, the work efficiency is high, and it can process the shaft head to pass the flat, and the shaft head does not have the groove flat. Two ends of four processing surfaces can be processed at the same time.

It takes the imported programmable controller from Taiwan as the core, uses an advanced contactless switch as the limit, and carries on the program control. The work is stable and reliable, the degree of automation is high, and it is suitable for batch processing of the roller shaft. It is essential equipment for machining shaft surfaces in the conveying industry.

Technical parameter:

project parameter
model TX-2023
Spindle rotation number 150 r/min
Workpiece center height 850 mm
Machining roller shaft diameter Ф20-Ф40mm
Machining roller shaft length 260-2300mm
Machining shaft groove flat width 6-35mm
milling depth 0-5mm
Spindle motor 3 kW × 2
Working pressure of hydraulic system 1.5-4 MPa
Machine weight 3000 kg
outline dimension 4000×1500×1440 mm

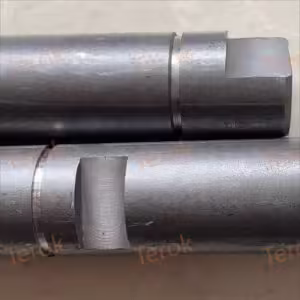

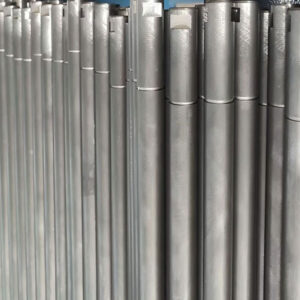

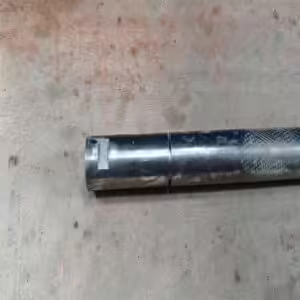

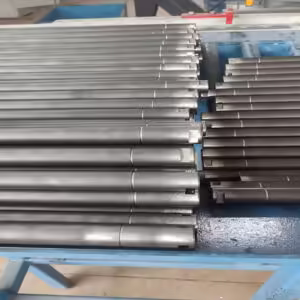

Finished product:

Related Products

  • Automatic Tube Cutting Machine

    Automatic Tube Cutting Machine (Servo Tool Feeding)

    It adopts a PLC human-machine interface control system. It’s easy to operate with automatic length fixing, feeding, and cutting upon inputting related data. It lets the servo motor, ball screws, and linear rail work together to feed materials; therefore, a high accuracy is acquired. It uses the tool rotary method; literally, the tool is rotating and the tube is static, and it brings a smooth cutting surface and fewer burrs. It has the features of high cutting speed and accuracy, longer tool life, lower labor intensity, and so on. It has been used widely in many industries.
  • Automatic roller double end holes lathe

    Automatic Roller Double End Holes Lathe

    This machine tool is a special machine tool designed to process the ends of steel pipe of belt conveyor. It is suitable for all kinds of rollers produced at home and abroad (cast iron or punching bearing seat). The machine adopts a mechanical fast clamping device, reliable clamping, simple and convenient adjustment of clamping force, hydraulic drive of cutter feed, adjustable speed without electrode, and hydraulic synchronous loop of the right and left two feed cylinders, which can feed at the same time and return the cutter at the same time.
  • Roller Double-End Automatic Setting Bearing Machine

    Roller Double-End Automatic Setting Bearing Machine

    This machine adopts the hydraulic press-fitting method. It’s a semi-automatic special machine that assembles the conveyor rollers. It’s suitable for the assembly of all kinds of rollers (cast iron or pressed bearing housing) that are manufactured domestically or overseas. The length and diameter of the pressed rollers can be adjusted within a certain range. The loading is manual. Pressing the double head simultaneously can greatly improve the working efficiency. It’s appropriate for batch idler pressing assembly with its economical and practical features.
  • Roller Double End Carbon Dioxide Arc Welding Machine

    Roller Double End Carbon Dioxide Arc Welding Machine

    The machine adopts CO₂Ar or CO₂Ar Ar or CO₂O₂ as the protective gas of welding or the protective welding method of using flux-cored wire CO₂.. The welding strength is high, the center is automatically adjusted, and the welding is at the same time. The pneumatic clamping can complete the hydraulic cylinder, firefighting equipment, roller, etc. In particular, the control system based on the imported programmable controller (PLC) is adopted to replace the traditional relay logic control circuit to make the equipment reliable. The scope of application and work efficiency have been greatly improved.
