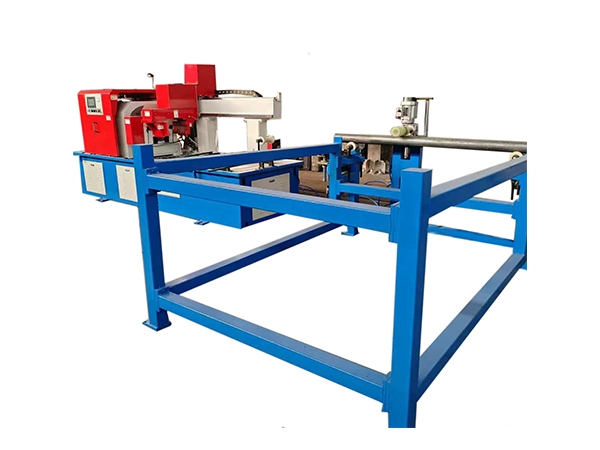

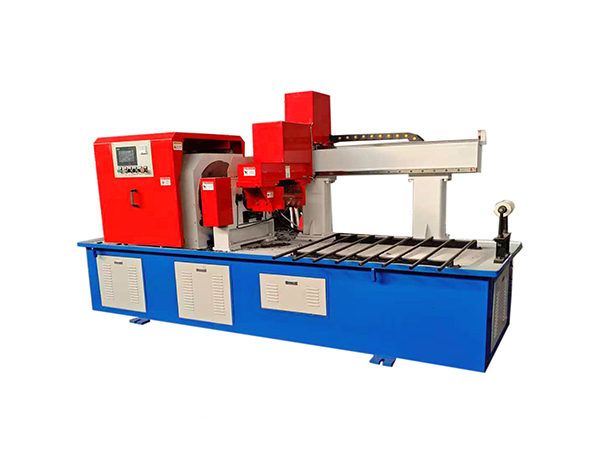

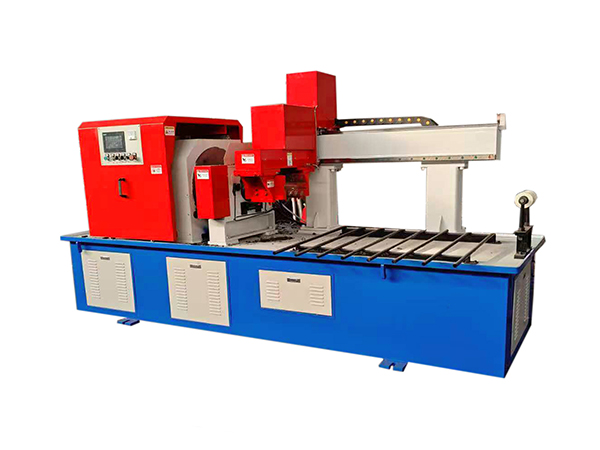

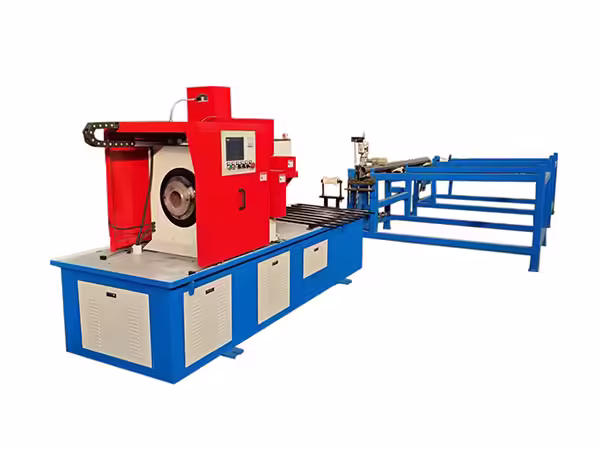

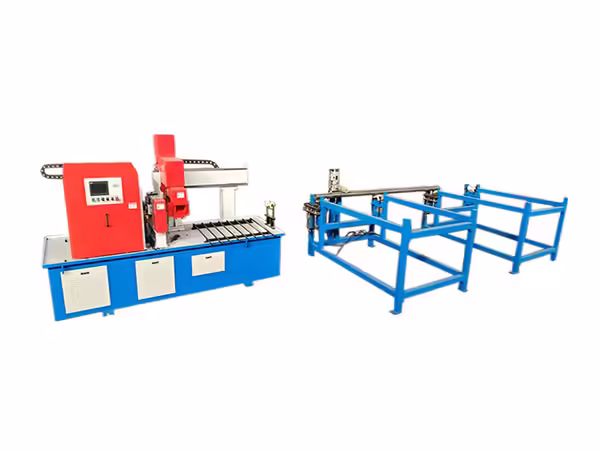

Automatic pipe cutting machine

The tube cutting machine utilizes a PLC human-machine interface for intuitive operation, ensuring convenience, safety, and efficiency. The user-friendly design allows simple input of data to automatically perform length determination, material feeding, and cutting. Equipped with servo motors, ball screws, and linear guides for material feeding, it supports unlimited lengths with adjustable speed and high precision. The tool rotation method ensures smooth cuts without tube rotation, producing clean surfaces with minimal burrs. Featuring rapid cutting speed, high precision, tool-saving design, and low labor intensity, this equipment has been widely adopted across multiple industries.
High Durability And High Efficiency
Precision Machining And Customization
Comprehensive Technical Support
Comprehensive After-Sales Guarantee

This equipment has two models, CNZDQ160 and CNZDQ220, please consult for details

Machine tool characteristics：

The tube cutting machine utilizes a PLC human-machine interface for intuitive operation, ensuring convenience, safety, and efficiency. The user-friendly design allows simple input of data to automatically perform length determination, material feeding, and cutting. Equipped with servo motors, ball screws, and linear guides for material feeding, it supports unlimited lengths with adjustable speed and high precision. The tool rotation method ensures smooth cuts without tube rotation, producing clean surfaces with minimal burrs. Featuring rapid cutting speed, high precision, tool-saving design, and low labor intensity, this equipment has been widely adopted across multiple industries. The system incorporates an automatic feeding rack and spindle motor frequency converter for speed regulation. Compact cutting edges reduce material waste while operating quietly. Optional automatic feeding racks enable versatile applications including polymer tube, steel pipe cutting, and chamfering.

plant parameter：

order number  project  parameter  remarks
1 Machine tool model CNZDQ220
2  operate mode The pipe does not move, and the tool rotates and cuts Cuttable plastic pipes
3 Push and pull Servo motor drives the feed and retraction of the knife
4 Shaft speed control mode Frequency converter has no pole speed control
5  amount of feed Servo adjustable
6 Cut tube thickness 3–20mm
7 Working pressure of hydraulic system 2.5- 4.0MPa
8 Cut the tube length L300～2200 mm
9 Cut the diameter of the pipe φ89– φ219mm
10 Main shaft motor 11Kw
11 Hydraulic motors 2HP   1.5Kw
12 Servo drive motor 2.3Kw
13 Cut the length error ≤0.2mm
14 Cut the parallelness error of two sections ≤0.2mm
15 The rack is adapted to the length of the raw material Available in 6m,9m and 12m
16  control method Programmable Logic Controller (PLC)

Main configuration details：

 order number  name  specifications and models  manufacturer  remarks
1  hydraulic pressure station 2HP-4 Kang Hao
2  servo-control system BP410 Delta Taiwan
3  AC contactor CJX2 Zhengtai
4  push-button SB2 Zhengtai
5 Shaft frequency conversion VM1000B-4T011GB/015PB  tricrystal
6  transformer BK- 300 Zhengtai
7  direct-current main EDR-150-24 Ming Wei
8  proximity switch LJ12A3-4 DC6-36V Shanghai workers
