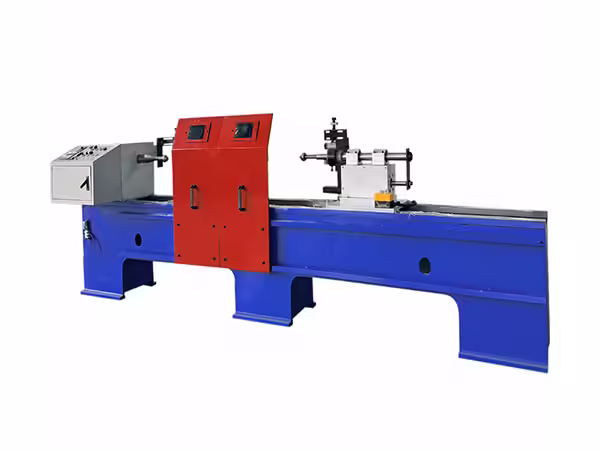

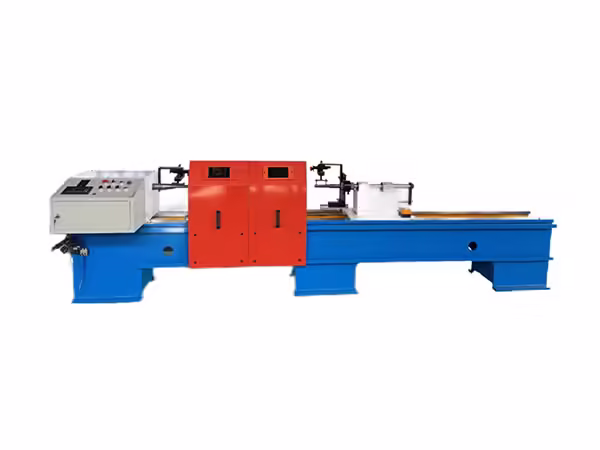

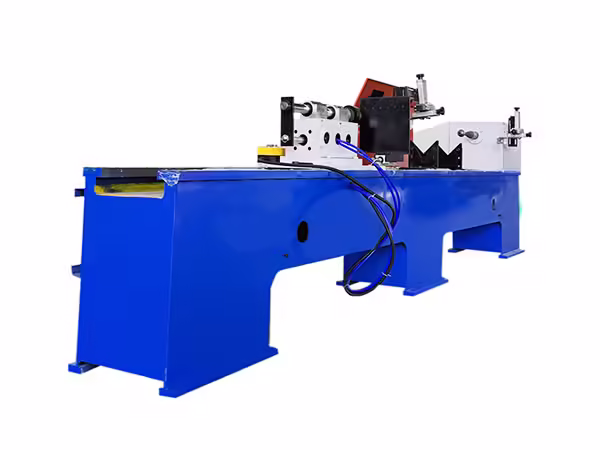

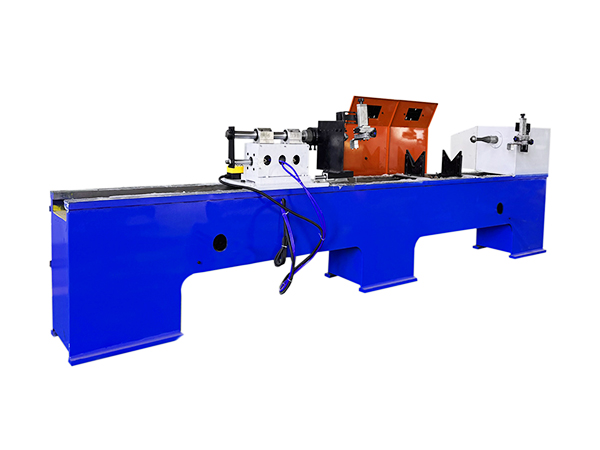

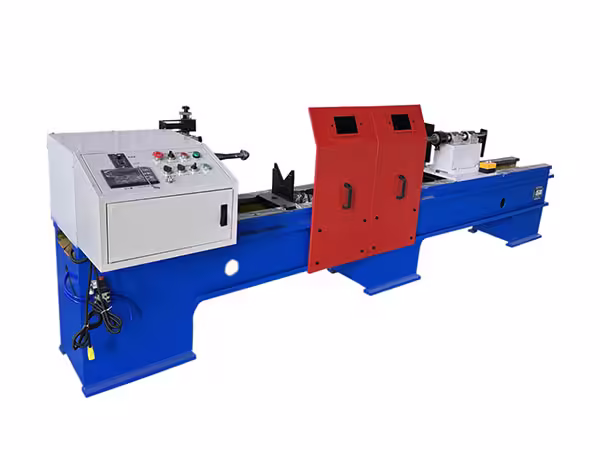

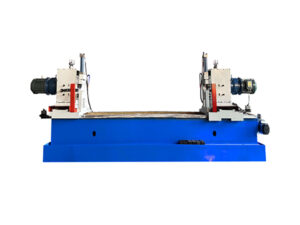

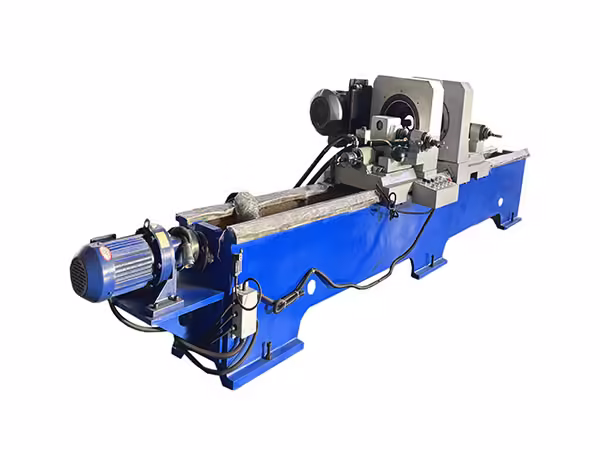

Roller double end carbon dioxide arc welding machine

The machine adopts CO _ 2Ar CO _ 2ar ar CO2 O _ 2 as the protective gas of welding or the protective welding method of using flux-cored wire CO2. The welding strength is high, the center is automatically adjusted, and the welding is at the same time. The pneumatic clamping can complete the hydraulic cylinder, fire fighting equipment, roller, etc. In particular, the control system based on the imported programmable controller (PLC) is adopted to replace the traditional relay logic control circuit to make the equipment reliable. The scope of application and work efficiency have been greatly improved.
High Durability And High Efficiency
Precision Machining And Customization
Comprehensive Technical Support
Comprehensive After-Sales Guarantee

This equipment has two models, TH-160*2200 and TH-220*2200. Please consult for details.

Product use and scope of application:

The machine adopts CO _ 2Ar CO _ 2ar ar CO2 O _ 2 as the protective gas of welding or the protective welding method of using flux-cored wire CO2. The welding strength is high, the center is automatically adjusted, and the welding is at the same time. The pneumatic clamping can complete the hydraulic cylinder, fire fighting equipment, roller, etc. In particular, the control system based on the imported programmable controller (PLC) is adopted to replace the traditional relay logic control circuit to make the equipment reliable. The scope of application and work efficiency have been greatly improved.

Technical parameters:

project parameter
model TH-220*2200
Machine tool center height 850mm
Welding workpiece length 200-2200mm
Welding workpiece diameter Ф76-Ф219mm
welding current 60-350A(350KR)
floating voltage 45-55V(350KR)
rated capacity 50KVA(350KR)
shield gas flow rate 10-25L/min
Weldable workpiece length 200-2200mm
Welding rotation speed 0-10rpm/min
outline dimension 3800x500x1150
 weight 1500Kg

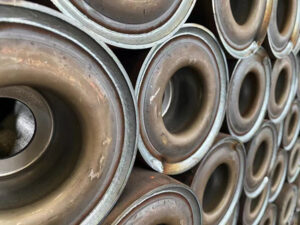

Finished product：

Related Products

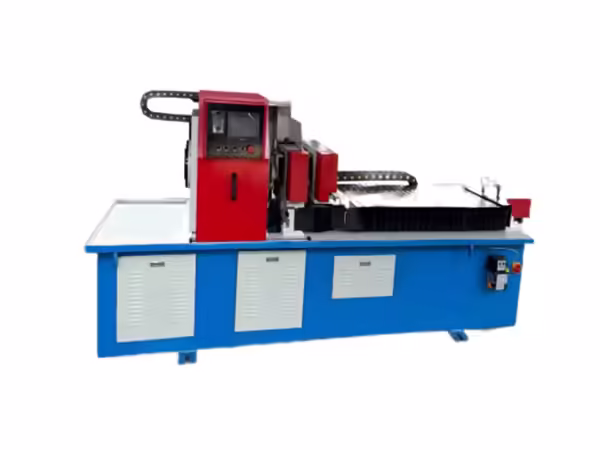

  • Automatic tube cutting machine (Servo tool feeding)

    It adopts PLC human-machine interface control system. It’s easy to operate with automatic length fixing, feeding and cutting upon inputting related data. It lets servo motor, ball screws and linear rail work together to feed materials therefore a high accuracy is acquired. It uses tool rotary method, literally, It’s tool is rotating and the tube is static, and it brings a smooth cutting surface and less burrs. It has the features of high cutting speed and accuracy, longer tool life, lower labour intensity and so on. It has been used widely in many industries.

  • Automatic roller double end holes lathe

    This machine tool is a special machine tool designed to process the ends of steel pipe of belt conveyor. It is suitable for all kinds of rollers produced at home and abroad (cast iron or punching bearing seat).The machine adopts mechanical fast clamping device, reliable clamping, simple and convenient adjustment of clamping force, hydraulic drive of cutter feed, adjustable speed without electrode, and hydraulic synchronous loop of right and left two feed cylinders, which can feed at the same time and return the cutter at the same time.

  • Roller double-end automatic setting bearing machine

    This machine adopts hydraulic press-fitting method. It’s a semi-automatic special machine that assembles the conveyor rollers. It’s suitable for the assembly of all kinds of rollers(cast iron or pressed bearing housing) that manufactured domestically or overseas. The length and diameter of the pressed rollers can be adjusted within a certain range. The loading is manual. Pressing Double head simultaneously can greatly improve the working efficiency. It’s appropriate for batch idler pressing assembly with its economical and practical features .

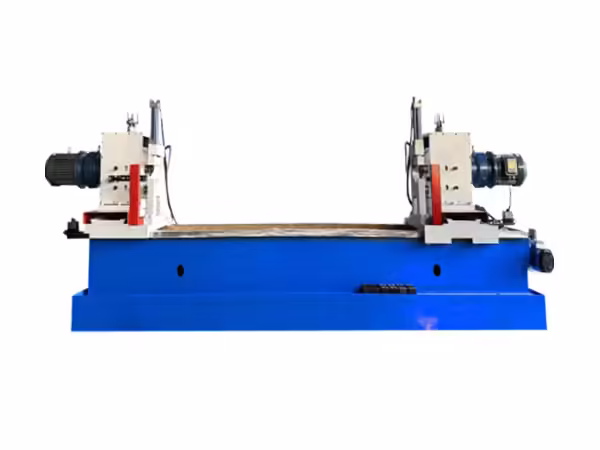

  • Automatic roller shaft double end flat slot milling machine

    The product is a special automatic equipment for machining belt conveyor roller shaft with flat groove at both ends. It is suitable for production and processing of roller shaft at home and abroad.This machine uses the domestic advanced superposition valve hydraulic system, realizes the spindle box fast advance, fast back, and can speed speed stepless, the auxiliary man-hour is small, the work efficiency is high, can process the shaft head to pass the flat and the shaft head does not have the groove flat, Two ends of four processing surfaces at the same time.
