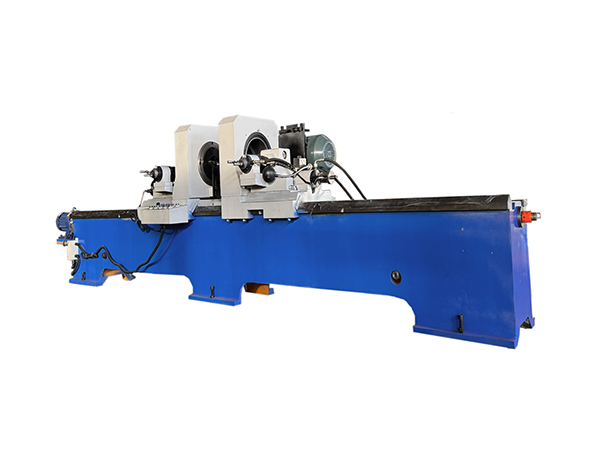

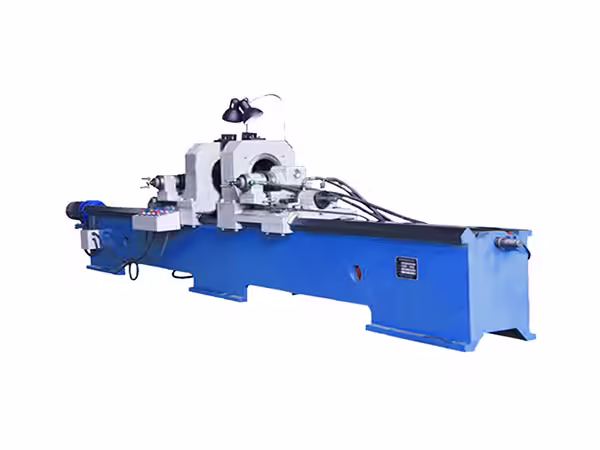

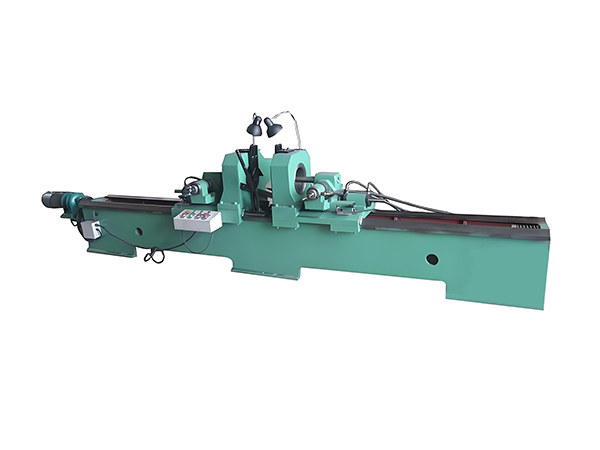

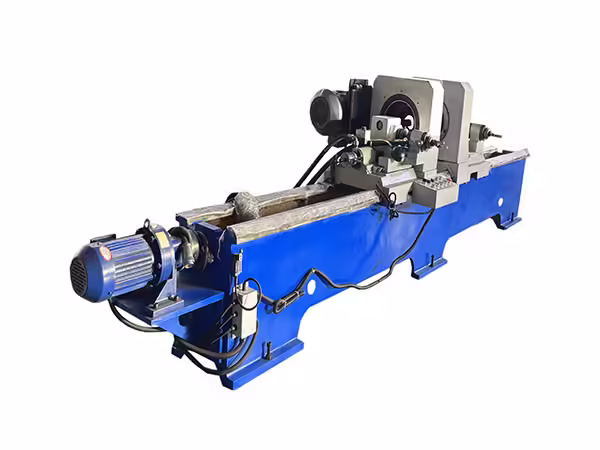

Automatic roller double end holes lathe

This machine tool is a special machine tool designed to process the ends of steel pipe of belt conveyor. It is suitable for all kinds of rollers produced at home and abroad (cast iron or punching bearing seat).The machine adopts mechanical fast clamping device, reliable clamping, simple and convenient adjustment of clamping force, hydraulic drive of cutter feed, adjustable speed without electrode, and hydraulic synchronous loop of right and left two feed cylinders, which can feed at the same time and return the cutter at the same time.
High Durability And High Efficiency
Precision Machining And Customization
Comprehensive Technical Support
Comprehensive After-Sales Guarantee

This equipment has two models, TH-160*2200 and TH-220*2200. Please consult for details.

Product use and scope of application:

This machine tool is a special machine tool designed to process the ends of steel pipe of belt conveyor. It is suitable for all kinds of rollers produced at home and abroad (cast iron or punching bearing seat).The machine adopts mechanical fast clamping device, reliable clamping, simple and convenient adjustment of clamping force, hydraulic drive of cutter feed, adjustable speed without electrode, and hydraulic synchronous loop of right and left two feed cylinders, which can feed at the same time and return the cutter at the same time.

The radial feed adopts manual operation, which can be adjusted precisely according to the machining requirements. It is equipped with a hydraulic automatic tool mechanism, which can automatically let the cutter when it is fed to a predetermined position. Avoid scratching the machined surface. The control system based on the imported programmable controller (PLC) is used for electrical control.

The equipment has the advantages of wide application, high reliability and high working efficiency. It is especially suitable for the processing and production of batch rollers.

Technical parameter：

project parameter
model TC-220*2200
Machine tool spindle center height 900mm
Outer diameter of processed steel pipe Ф76-219mm
Machined steel pipe length 200-2200mm
Depth of both ends of processing 0-70mm
Sliding speed of sliding seat 2m/min
main shaft speed 500r/min
feed rate Hydraulic stepless speed regulation
cutting depth 0-3mm
Tool holder radial feed scale value per lattice 0.05mm
Accuracy of Radial tool Repeating-positioning of tool holder 0.05mm
Main drive motor 4kw 1450r/min
Workpiece clamp motor 1.5kw 1450r/min
Working pressure of hydraulic system 2.5-4Mpa
rate of flow 0-25L/min
contour size of the unit(s) 4500×1120×1200mm
weight 2500Kg

Related Products

  • Automatic tube cutting machine (Servo tool feeding)

    It adopts PLC human-machine interface control system. It’s easy to operate with automatic length fixing, feeding and cutting upon inputting related data. It lets servo motor, ball screws and linear rail work together to feed materials therefore a high accuracy is acquired. It uses tool rotary method, literally, It’s tool is rotating and the tube is static, and it brings a smooth cutting surface and less burrs. It has the features of high cutting speed and accuracy, longer tool life, lower labour intensity and so on. It has been used widely in many industries.

  • Roller double-end automatic setting bearing machine

    This machine adopts hydraulic press-fitting method. It’s a semi-automatic special machine that assembles the conveyor rollers. It’s suitable for the assembly of all kinds of rollers(cast iron or pressed bearing housing) that manufactured domestically or overseas. The length and diameter of the pressed rollers can be adjusted within a certain range. The loading is manual. Pressing Double head simultaneously can greatly improve the working efficiency. It’s appropriate for batch idler pressing assembly with its economical and practical features .

  • Roller double end carbon dioxide arc welding machine

    The machine adopts CO _ 2Ar CO _ 2ar ar CO2 O _ 2 as the protective gas of welding or the protective welding method of using flux-cored wire CO2. The welding strength is high, the center is automatically adjusted, and the welding is at the same time. The pneumatic clamping can complete the hydraulic cylinder, fire fighting equipment, roller, etc. In particular, the control system based on the imported programmable controller (PLC) is adopted to replace the traditional relay logic control circuit to make the equipment reliable. The scope of application and work efficiency have been greatly improved.

  • Automatic roller shaft double end flat slot milling machine

    The product is a special automatic equipment for machining belt conveyor roller shaft with flat groove at both ends. It is suitable for production and processing of roller shaft at home and abroad.This machine uses the domestic advanced superposition valve hydraulic system, realizes the spindle box fast advance, fast back, and can speed speed stepless, the auxiliary man-hour is small, the work efficiency is high, can process the shaft head to pass the flat and the shaft head does not have the groove flat, Two ends of four processing surfaces at the same time.
