Roller TKII seal

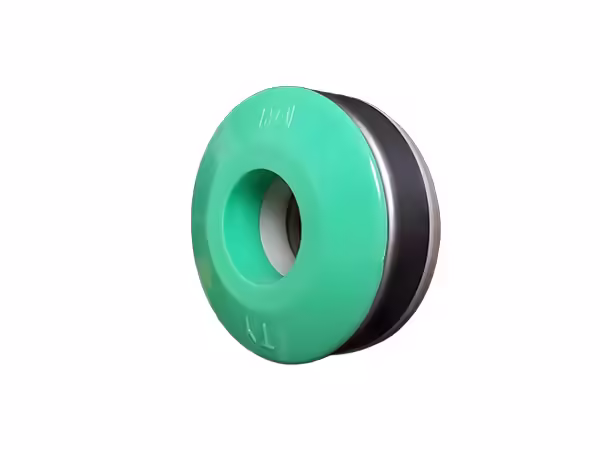

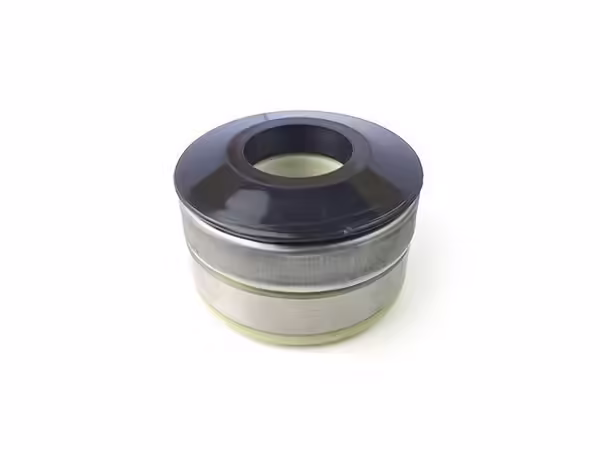

The TKII labyrinth seal for idlers is a dust- and water-resistant seal widely used in belt conveyors. It is designed to withstand the harsh working conditions of high dust and humidity, such as coal mines and material yards. The TKII labyrinth seal utilizes a double-layer nested seal ring structure. The inner and outer seal rings form a tortuous labyrinthine gap channel through multiple annular bosses and grooves. This design significantly reduces the intrusion path for dust and moisture. Combined with an oil-retaining nylon bearing housing and hydrogenated nitrile lip seals, it achieves a combination of dynamic sealing and static protection.
High Durability And High Efficiency
Precision Machining And Customization
Comprehensive Technical Support
Comprehensive After-Sales Guarantee

The TKII labyrinth seal for idlers is a dust- and water-resistant seal widely used in belt conveyors. It is designed to withstand the harsh working conditions of high dust and humidity, such as coal mines and material yards.

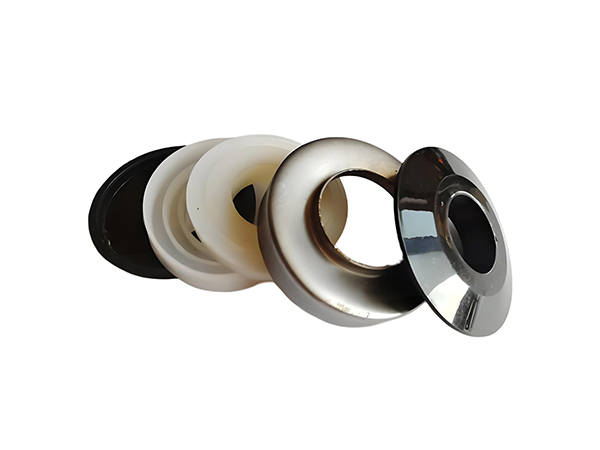

The TKII labyrinth seal utilizes a double-layer nested seal ring structure. The inner and outer seal rings form a tortuous labyrinthine gap channel through multiple annular bosses and grooves. This design significantly reduces the intrusion path for dust and moisture. Combined with an oil-retaining nylon bearing housing and hydrogenated nitrile lip seals, it achieves a combination of dynamic sealing and static protection.
Material Optimization

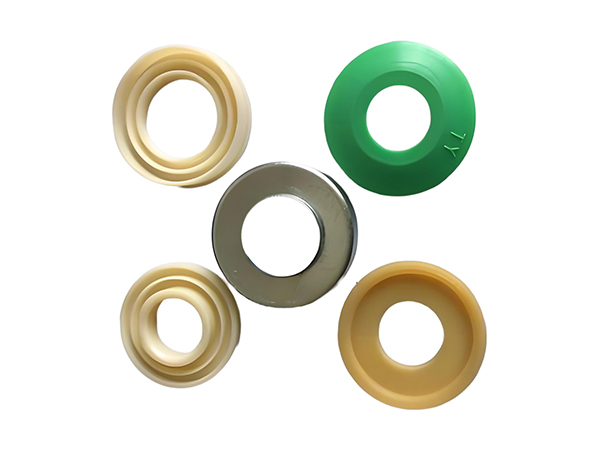

Seal Rings: The inner and outer seal rings are made of oil-retaining nylon (PA6), which is self-lubricating, antistatic, and wear-resistant, reducing friction and preventing dust absorption.
Lip Seals: The inner and outer hydrogenated nitrile lip seals provide auxiliary sealing, and reinforced lip supports prevent deformation caused by abrasion by foreign matter.
Bearing Seat: A stamped, cold-rolled steel bearing seat (such as SPCC) fits snugly within the roller housing. The surface is phosphated for enhanced rust resistance.
Thermal Expansion Compensation
The labyrinth seals allow 2mm of clearance in both the axial and radial directions to prevent seizure due to temperature fluctuations and ensure stable operation in temperatures ranging from -20°C to 50°C.

Related Products

  • Conveyor roller bearing seat

    Stamped bearing seats are a key component of rollers. They are primarily made from steel plates punched through multiple steps using a vertical press. They are often welded to steel pipes during roller manufacturing. Stamped bearing seats offer excellent sealing and strong overall bearing capacity, making them an indispensable component of roller structures.

  • Conveyor roller DT75 bearing seat

    The DT75 stamped bearing seat is an essential component of buffer rollers. These rollers are available in spring plate, buffer ring, high-pressure buffer, adjustable spring, and hanging types. These rollers feature advanced construction and reliable performance. The roller skins are carefully selected, using high-quality, specialized welded pipes held to exacting tolerances. The shaft is constructed from cold-drawn round steel, the stamped bearing seat is stamped from high-quality steel plate, and the PDC seal, with three seals, ensures dust and water resistance exceeding national standards. After assembly, the rollers exhibit excellent strength, minimal warp runout, low rotational resistance, low weight, low energy consumption, and a long service life, typically exceeding 30,000 hours.

  • Conveyor roller TKII bearing seat

    The rollers, assembled using a new bearing seat, have their labyrinth seal chambers filled with appropriate grease. Water and dust tests were conducted on a simulated reinforced test bench, demonstrating performance exceeding national standards and achieving the desired results.

  • Conveyor roller TKII bearing seat

    The TKII bearing housing is a crucial component of conveyor rollers, primarily supporting and securing the bearing. It is suitable for various types of equipment, including mining machinery and belt conveyors, improving operational efficiency and stability.
